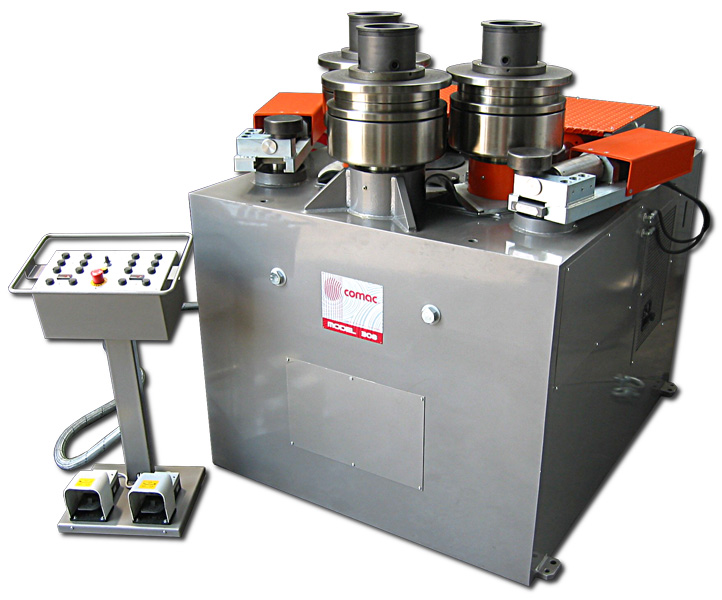

SERIE 3000 - MODEL 308

PROFILE UP TO [mm] TO ID [mm]
130 x 30
150 x 30
Ø 1200
Ø 4500
240 x 40 Ø 1000
75 x 75
85 x 85
Ø 700
Ø 2500
Ø 90 Ø 1000
Ø 168.3 x 4,5 Ø 6000
Ø 139.7 x 6,6 Ø 1500
150 x 80 x 6
120 x 6
120 x 15 Ø 1200
100 x 12 Ø 1000
120x120x13 Ø 1200
100x100x11 Ø 1200
130 x 130 Ø 1200
220 x 80 Ø 800
220 x 80 Ø 1000
220 x 98 Ø 1000
HEA 160
HEB 140

Ø 2000
Ø 2000

140 x 60 Ø 3500
160 x 74
160 x 82
Ø 2500
Ø 4000
HEA 120
HEB 120
Ø 3000
Ø 3500

Profile Bending Machines - Serie 3000

  • Machines compliant to 2006/42/CE standard
  • 3 driving rolls to guarantee maximum drive on the profile
  • Bending rolls independently adjustable, for double pre-bending capability on the leading and trailing end of symmetrical profiles
  • Lateral guide rolls with three-dimensional adjustment
  • Modular rolls that allow the bending of most profiles
  • Standard bending rolls of alloy steel, heat treated to surface hardness 60 HRC
  • Free standing remote control station to control the machine in safety
  • Possibility to install the machine both in vertical and horizontal position
  • One-piece fabricated steel frame
  • Torque limiter installed on top roll shaft
  • Shaft and pinions installed on high dynamic load roller bearings
  • Gears coupled directly on splined shaft
  • Water based environmental friendly paint
